Installation
INSTALLATION
PROCEDURE
1. INSTALL BATTERY COOLING BLOWER BRACKET
(a) Install the battery cooling blower bracket to the battery cooling blower assembly with the 3 bolts.
Torque:
7.5 N·m {76 kgf·cm, 66 in·lbf}
(b) Engage the clamp.
2. INSTALL BATTERY COOLING BLOWER ASSEMBLY
(a) Install the battery cooling blower assembly to the HV battery with the bolt and nut.
Torque:
7.5 N·m {76 kgf·cm, 66 in·lbf}
NOTICE:
- Be sure not to touch the fan part of the battery cooling blower assembly.
- Do not lift the battery cooling blower assembly using the wire harness.
(b) Connect the battery cooling blower assembly connector.
3. INSTALL NO. 1 HYBRID BATTERY INTAKE DUCT
(a) Install the No. 1 hybrid battery intake duct to the battery cooling blower assembly with the 2 clips.
(b) Engage the 2 clamps.
4. INSTALL REAR SEAT CUSHION LEG SUB-ASSEMBLY
| (a) Temporarily install the rear seat cushion leg sub-assembly with the 6 bolts. |
|
(b) Fully tighten the 6 bolts in the order shown in the illustration.
Torque:
16 N·m {163 kgf·cm, 12 ft·lbf}
5. INSTALL REAR UNDER COVER
(a) Engage the 2 guides.
(b) Engage the 2 clips to install the rear under cover to the rear seat cushion leg sub-assembly.
6. INSTALL REAR UNDER SIDE COVER LH
(a) Engage the claw, 5 clips and guide.
(b) Install the rear under side cover LH with the 2 clips.
7. INSTALL REAR DOOR SCUFF PLATE LH
Click here
8. INSTALL REAR UNDER SIDE COVER RH
(a) Engage the claw, 5 clips and guide.
(b) Install the rear under side cover RH with the 2 clips.
9. INSTALL REAR DOOR SCUFF PLATE RH
HINT:
Use the same procedure as for the LH side.
10. INSTALL REAR SEAT CUSHION LOCK HOOK
Click here
11. INSTALL REAR SEAT CUSHION ASSEMBLY
Click here
12. CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
Click here
Removal
REMOVAL
PROCEDURE
1. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
Click here
2. REMOVE REAR SEAT CUSHION ASSEMBLY
Click here
3. REMOVE REAR SEAT CUSHION LOCK HOOK
Click here
4. REMOVE REAR DOOR SCUFF PLATE LH
Click here
5. REMOVE REAR UNDER SIDE COVER LH
| (a) Remove the 2 clips (A). |
 |
|
*a | Clip (A) | |
*b | Clip (B) | |
*c | Clip (C) | | |
(b) Disengage the claw, 3 clips (B), 2 clips (C) and guide to remove the rear under side cover LH.
6. REMOVE REAR DOOR SCUFF PLATE RH
HINT:
Use the same procedure as for the LH side.
7. REMOVE REAR UNDER SIDE COVER RH
| (a) Remove the 2 clips (A). |
 |
|
*a | Clip (A) | |
*b | Clip (B) | |
*c | Clip (C) | | |
(b) Disengage the claw, 3 clips (B), 2 clips (C) and guide to remove the rear under side cover RH.

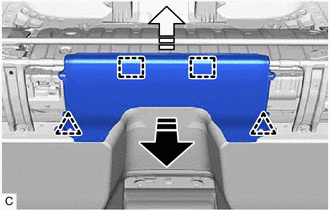

8. REMOVE REAR UNDER COVER
(a) Pull the rear under cover in the direction indicated by the arrow (1) shown in the illustration to disengage the 2 clips.
 |
Remove in this Direction (1) |
 |
Remove in this Direction (2) |
(b)
Pull the rear under cover in the direction indicated by the arrow (2)
shown in the illustration to disengage the 2 guides to remove it from
the rear seat cushion leg sub-assembly.
9. REMOVE REAR SEAT CUSHION LEG SUB-ASSEMBLY
| (a) Remove the 6 bolts and rear seat cushion leg sub-assembly. |
|
10. REMOVE NO. 1 HYBRID BATTERY INTAKE DUCT
| (a) Disengage the 2 clamps. | |
| (b) Remove the 2 clips and No. 1 hybrid battery intake duct from the battery cooling blower assembly. |
|
11. REMOVE BATTERY COOLING BLOWER ASSEMBLY
| (a) Disconnect the battery cooling blower assembly connector. |
|
| (b) Remove the bolt, nut and battery cooling blower assembly from the HV battery.
NOTICE:
- Be sure not to touch the fan part of the battery cooling blower assembly.
- Do not lift the battery cooling blower assembly using the wire harness.
| |
12. REMOVE BATTERY COOLING BLOWER BRACKET
(b) Remove the 3 bolts and battery cooling blower bracket from the battery cooling blower assembly.
