Toyota Avalon (XX50): Fuel Pressure Sensor
Components
COMPONENTS
ILLUSTRATION
|
*1 | FUEL PRESSURE SENSOR (FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY) |
- | - |
Inspection
INSPECTION
PROCEDURE
1. INSPECT FUEL PRESSURE SENSOR (FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY)
NOTICE:
- Do not remove the fuel pressure sensor from the fuel delivery pipe with sensor assembly.
- If the fuel pressure sensor is removed, replace the fuel pressure sensor
(fuel delivery pipe with sensor assembly) with a new one.
(a) Check the fuel pressure sensor output voltage.

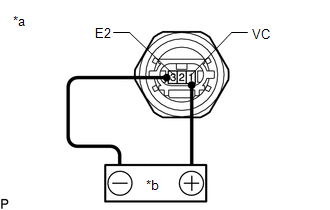

| (1) Apply 5 V between terminals 1 (VC) and 3 (E2).
NOTICE:
- Be careful when connecting the leads, as the fuel pressure sensor may be
damaged if the leads are connected to the wrong terminals.
- Do not apply more than 6 V to terminals 1 (VC) or 3 (E2).
HINT: If a stable power supply is not available, connect 4 nickel-metal hydride batteries (1.2 V each) or equivalent in series. |
 |
|
*a | Component without harness connected
(Fuel Pressure Sensor) | |
*b | Voltage Applied between Terminals | | |
| (2) Measure the voltage according to the value(s) in the table below.
Standard Voltage: |
Tester Connection | Condition |
Specified Condition | |
2 (PFL) - 3 (E2) |
Pressure not applied to fuel pressure sensor |
Approximately 0.57 to 0.95 V* |
*: The output voltage changes depending on the voltage applied to the terminals.
If the result is not as specified, replace the fuel pressure sensor (fuel delivery pipe with sensor assembly). |
 |
|
*a | Component without harness connected
(Fuel Pressure Sensor) | | |
Installation
INSTALLATION
PROCEDURE
1. INSTALL FUEL PRESSURE SENSOR (FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY)
HINT:
Perform "Inspection After Repair" after replacing the fuel pressure sensor (fuel delivery pipe with sensor assembly).
Click here
Click here
NOTICE:
- Do not remove the fuel pressure sensor from the fuel delivery pipe with sensor assembly.
- If the fuel pressure sensor is removed, replace the fuel pressure sensor
(fuel delivery pipe with sensor assembly) with a new one.
2. PERFORM INITIALIZATION
(a) Perform "Inspection After Repair" after replacing the fuel pressure sensor (fuel delivery pipe with sensor assembly).
Click here
Removal
REMOVAL
CAUTION / NOTICE / HINT
The
necessary procedures (adjustment, calibration, initialization or
registration) that must be performed after parts are removed and
installed, or replaced during fuel pressure sensor (fuel delivery pipe
with sensor assembly) removal/installation are shown below.
Necessary Procedures After Parts Removed/Installed/Replaced |
Replaced Part or Performed Procedure |
Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed |
Link |
|
*: When performing learning using the Techstream.
Click here  |
|
Battery terminal is disconnected/reconnected |
Perform steering sensor zero point calibration |
Lane Departure Alert System (w/ Steering Control) |
|
|
Pre-collision System |
|
Intelligent Clearance Sonar System* |
|
Lighting System (for Gasoline Model with Cornering Light) |
|
Memorize steering angle neutral point |
Parking Assist Monitor System |
|
|
Panoramic View Monitor System |
|
- Replacement of fuel injector assembly
- Replacement of fuel pressure sensor (fuel delivery pipe with sensor assembly)
- Replacement of throttle body with motor assembly
- Cleaning the deposits from the throttle body with motor assembly
| Inspection after repair |
- Poor idle, etc.
- Engine start function, etc.
|
|
CAUTION:
- Never perform work on fuel system components near any possible ignition sources.
- Vaporized fuel could ignite, resulting in a serious accident.
- Do not perform work on fuel system components without first disconnecting the cable from the negative (-) battery terminal.
- Sparks could cause vaporized fuel to ignite, resulting in a serious accident.
PROCEDURE
1. REMOVE FUEL PRESSURE SENSOR (FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY)
Click here
NOTICE:
- Do not remove the fuel pressure sensor from the fuel delivery pipe with sensor assembly.
- If the fuel pressure sensor is removed, replace the fuel pressure sensor
(fuel delivery pipe with sensor assembly) with a new one.
