Actuator Supply Voltage "A" Circuit Short to Ground or Open (P065714)

DESCRIPTION

The electronic throttle control system has a dedicated power supply circuit. The voltage (+BM) is monitored and when it is low (less than 4 V), the ECM determines that there is a malfunction in the electronic throttle control system and cuts off the current to the throttle actuator.

When the voltage becomes unstable, the electronic throttle control system itself becomes unstable. For this reason, when the voltage is low, the current to the throttle actuator is cut. If repairs are made and the system returns to normal, turn the power switch off. If a malfunction is not detected the ECM allows current to flow to the throttle actuator so that it can operate.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Memory

Note

P065714

Actuator Supply Voltage "A" Circuit Short to Ground or Open

An open or short is detected in the electronic throttle control system power source (+BM) circuit (1 trip detection logic).
  • Open or short in electronic throttle control system power source circuit
  • ECM

Comes on

DTC stored

SAE Code: P0658

MONITOR DESCRIPTION

The ECM monitors the auxiliary battery supply voltage applied to the throttle actuator.

When the power supply voltage (+BM) is less than 4 V for 0.8 seconds or more, the ECM interprets this as an open or short to ground in the power supply circuit, then illuminates the MIL and stores this DTC.

MONITOR STRATEGY

Related DTCs

P0658: Electronic throttle actuator supply voltage circuit range check (low voltage)

Required Sensors/Components (Main)

Throttle actuator

Throttle valve (throttle body with motor assembly)

Required Sensors/Components (Related)

-

Frequency of Operation

Continuous

Duration

0.8 seconds

MIL Operation

Immediate

Sequence of Operation

None

TYPICAL ENABLING CONDITIONS

Monitor runs whenever the following DTCs are not stored

None

Both of the following conditions are met

-

Command to electronic throttle actuator power

On

Auxiliary battery voltage

8 V or higher

TYPICAL MALFUNCTION THRESHOLDS

Electronic throttle actuator power supply voltage

Less than 4 V

CONFIRMATION DRIVING PATTERN

HINT:

  • After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

    Click here

  • When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

    Click here

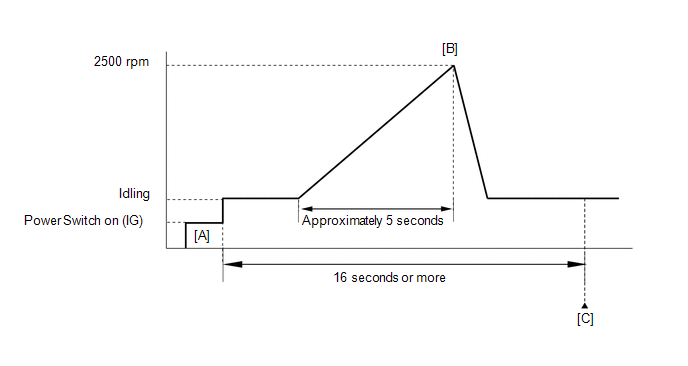

  1. Connect the Techstream to the DLC3.
  2. Turn the power switch on (IG).
  3. Turn the Techstream on.
  4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  5. Turn the power switch off and wait for at least 30 seconds.
  6. Turn the power switch on (IG) [A].
  7. Turn the Techstream on.
  8. Put the engine in Inspection Mode (Maintenance Mode).

    Click here

  9. Start the engine.
  10. Slowly depress the accelerator pedal, raise the engine speed to approximately 2500 rpm over approximately 5 seconds, and then idle the engine [B].
  11. Check that 16 seconds or more have elapsed since the engine was started.
  12. Enter the following menus: Powertrain / Engine / Trouble Codes [C].
  13. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
  14. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  15. Input the DTC: P065714.
  16. Check the DTC judgment result.

    Techstream Display

    Description

    NORMAL
    • DTC judgment completed
    • System normal

    ABNORMAL
    • DTC judgment completed
    • System abnormal

    INCOMPLETE
    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system is malfunctioning.
    • If the judgment result is INCOMPLETE, perform steps [B] through [C] again.
    • [A] to [C]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

FAIL-SAFE

When any of these DTCs or other DTCs relating to Electronic Throttle Control System (ETCS) malfunctions are stored, the ECM enters fail-safe mode. During fail-safe mode, the ECM cuts the current to the throttle actuator, and the throttle valve is returned to a 7.5° throttle valve opening angle by the return spring. The ECM then adjusts the engine output by controlling the fuel injection (intermittent fuel-cut) and ignition timing, in accordance with the accelerator pedal angle, to allow the vehicle to continue running at a minimal speed. If the accelerator pedal is depressed firmly and gently, the vehicle can be driven slowly.

Fail-safe mode continues until a pass condition is detected, and the power switch is turned off.

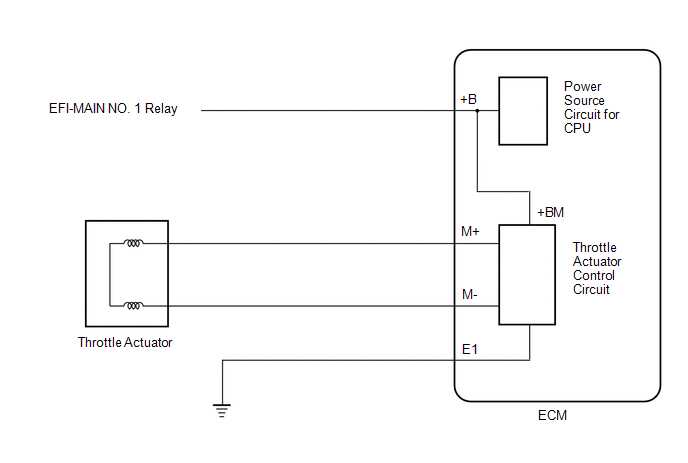

WIRING DIAGRAM

Refer to DTC P210014.

Click here

CAUTION / NOTICE / HINT

NOTICE:

  • Inspect the fuses for circuits related to this system before performing the following procedure.
  • Vehicle Control History may be stored in the hybrid vehicle control ECU assembly if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the Freeze Frame Data and Vehicle Control History can be useful for troubleshooting.

    Click here

    (Select Powertrain in Health Check and then check the time stamp data.)

    Click here

  • If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU assembly, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.

    Click here

HINT:

Read Freeze Frame Data using the Techstream. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1.

CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P065714)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Trouble Codes.

(e) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result

Proceed to

DTC P065714 is output

A

DTC is not output

B
A

REPLACE ECM

B

CHECK FOR INTERMITTENT PROBLEMS

High Pressure Fuel Pump Circuit Open (P123513)

DESCRIPTION

The high-pressure direct injection fuel system consists of a spill control valve, check valve, fuel relief valve, fuel pressure sensor (for high pressure side), fuel pump assembly (for high pressure side) and direct fuel injector assemblies. The spill control valve adjusts the return volume of the high-pressure fuel. The check valve mechanically opens and closes the paths to the fuel delivery pipes. The relief valve releases the fuel back to the fuel tank if the high-pressure fuel system malfunctions. The fuel pump assembly (for high pressure side) is installed to the cylinder head cover and operated by a cam installed to the end of the exhaust camshaft. Rotation of the camshaft moves the pump plunger inside the fuel pump assembly (for high pressure side) up and down, pressurizing the fuel. The pressurized fuel opens the check valve and is pumped into the fuel delivery pipe.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Memory

Note

P123513

High Pressure Fuel Pump Circuit Open

Open or short in fuel pump assembly (for high pressure side) circuit detected 60 times or more (1 trip detection logic).
  • Open or short in fuel pump assembly (for high pressure side) circuit
  • Fuel pump assembly (for high pressure side)
  • ECM

Comes on

DTC stored

SAE Code: P1235

MONITOR DESCRIPTION

If an open or short in the fuel pump assembly (for high pressure side) circuit is detected after the engine is started, the ECM will illuminate the MIL and store this DTC.

MONITOR STRATEGY

Related DTCs

P1235: Fuel pump (for high pressure side) circuit/open

Required Sensors/Components (Main)

Fuel pump assembly (for high pressure side)

Required Sensors/Components (Related)

Injector driver (ECM)

Frequency of Operation

Continuous

Duration

-

MIL Operation

Immediate

Sequence of Operation

None

TYPICAL ENABLING CONDITIONS

Monitor runs whenever the following DTCs are not stored

None

All of the following conditions are met

-

Time after engine start

5 seconds or more

Command to injector driver relay

On

Output duty cycle

5 to 95%

Auxiliary battery voltage

10.5 V or higher

Power switch

On (IG)

Engine

Running

TYPICAL MALFUNCTION THRESHOLDS

One of the following conditions is met

1, 2, 3, 4 or 5

1. Both of the following conditions are met

-

Following condition is met

60 time or more

High pressure fuel pump voltage detected by injector driver IC

4.8 V or higher

2. Both of the following conditions are met

-

Following condition is met

60 time or more

High pressure fuel pump voltage detected by injector driver IC

1.2 V or less

3. Both of the following conditions are met

-

Following condition is met

60 time or more

High pressure fuel pump current detected by injector driver IC

140 A or higher

4. Both of the following conditions are met

-

Following condition is met

60 time or more

High pressure fuel pump drive MOSFET current detected by injector driver IC

12 A or higher

5. Both of the following conditions are met

-

Following condition is met

60 time or more

High pressure fuel pump drive MOSFET voltage detected by injector driver IC

0.02 V or less

CONFIRMATION DRIVING PATTERN

HINT:

  • After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

    Click here

  • When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

    Click here

  1. Connect the Techstream to the DLC3.
  2. Turn the power switch on (IG).
  3. Turn the Techstream on.
  4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  5. Turn the power switch off and wait for at least 30 seconds.
  6. Turn the power switch on (IG).
  7. Turn the Techstream on.
  8. Put the engine in Inspection Mode (Maintenance Mode).

    Click here

  9. Start the engine [A].
  10. Idle the engine for 10 seconds [B].
  11. Enter the following menus: Powertrain / Engine / Trouble Codes [C].
  12. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
  13. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  14. Input the DTC: P123513.
  15. Check the DTC judgment result.

    Techstream Display

    Description

    NORMAL
    • DTC judgment completed
    • System normal

    ABNORMAL
    • DTC judgment completed
    • System abnormal

    INCOMPLETE
    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system has a malfunction.
    • If the judgment result is INCOMPLETE, perform steps [B] through [C] again.
    • [A] to [C]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

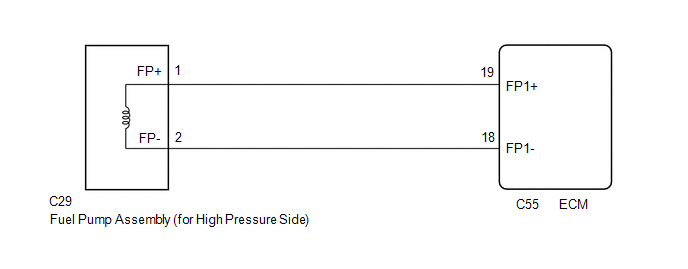

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • Vehicle Control History may be stored in the hybrid vehicle control ECU assembly if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the Freeze Frame Data and Vehicle Control History can be useful for troubleshooting.

    Click here

    (Select Powertrain in Health Check and then check the time stamp data.)

    Click here

  • If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU assembly, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.

    Click here

HINT:

  • If the current from the D INJ relay is cut because DTC P062D13 is stored, DTC P123513 will be stored even if the fuel pump assembly (for high pressure side) is normal.
  • Read Freeze Frame Data using the Techstream. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1.

INSPECT FUEL PUMP ASSEMBLY (FOR HIGH PRESSURE SIDE)

(a) Inspect the fuel pump assembly (for high pressure side).

Click here

HINT:

Perform "Inspection After Repair" after replacing the fuel pump assembly (for high pressure side).

Click here

NG

REPLACE FUEL PUMP ASSEMBLY (FOR HIGH PRESSURE SIDE)

OK

2.

CHECK HARNESS AND CONNECTOR (FUEL PUMP ASSEMBLY (FOR HIGH PRESSURE SIDE) - ECM)

(a) Disconnect the fuel pump assembly (for high pressure side) connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C29-1 (FP+) - C55-19 (FP1+)

Always

Below 1 Ω

C29-2 (FP-) - C55-18 (FP1-)

Always

Below 1 Ω

C29-1 (FP+) or C55-19 (FP1+) - Body ground and other terminals

Always

10 kΩ or higher

C29-2 (FP-) or C55-18 (FP1-) - Body ground and other terminals

Always

10 kΩ or higher
OK

REPLACE ECM

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

"A" Camshaft Position Actuator Bank 1 General Electrical Failure (P136001)

DESCRIPTION

Refer to DTC P001001.

Click here

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Memory

Note

P136001

"A" Camshaft Position Actuator Bank 1 General Electrical Failure

While engine is running, malfunction in rotation signal (VTS) of cam timing control motor with EDU assembly is detected for 3 seconds (1 trip detection logic).
  • Cam timing control motor with EDU assembly
  • Open or short in cam timing control motor with EDU assembly circuit
  • VVT relay
  • ECM

Comes on

DTC stored

SAE Code: P1360
Symptoms and Fail-safe Operation During Cam Timing Control Motor Malfunction

Vehicle Condition

Fail-Safe
  • Engine difficult to start
  • Lack of power

The cam timing control motor with EDU assembly is operated to the most retarded position.

MONITOR DESCRIPTION

This DTC is output when a rotation signal malfunction is detected in the cam timing control motor with EDU assembly. While the engine is running, if a rotation signal (VTS) malfunction is detected, a DTC is immediately output (1 trip detection logic).

MONITOR STRATEGY

Related DTCs

P1360: Camshaft position signal range check

Required sensors/Components (Main)

Cam timing control motor with EDU assembly

Required sensors/Components (Related)

-

Frequency of Operation

Continuous

Duration

3 seconds

MIL Operation

Immediate

Sequence of Operation

None

TYPICAL ENABLING CONDITIONS

Monitor runs whenever the following DTCs are not stored

None

All of the following conditions are met

-

Auxiliary battery voltage

11 V or higher

Power switch

On (IG)

Engine speed

100 rpm or higher

VVT motor direction calculated by camshaft position deviation

Forward

TYPICAL MALFUNCTION THRESHOLDS

VVT motor speed at VVT revolution sensor

0 rpm or less

CONFIRMATION DRIVING PATTERN

HINT:

  • After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

    Click here

  • When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

    Click here

  1. Connect the Techstream to the DLC3.
  2. Turn the power switch on (IG).
  3. Turn the Techstream on.
  4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  5. Turn the power switch off and wait for at least 30 seconds.
  6. Turn the power switch on (IG).
  7. Turn the Techstream on.
  8. Put the engine in Inspection Mode (Maintenance Mode).

    Click here

  9. Start the engine [A].
  10. Idle the engine for 30 seconds or more [B].
  11. Enter the following menus: Powertrain / Engine / Trouble Codes [C].
  12. Read pending the DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
  13. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
  14. Input the DTC: P136001.
  15. Check the DTC judgment result.

    Techstream Display

    Description

    NORMAL
    • DTC judgment completed
    • System normal

    ABNORMAL
    • DTC judgment completed
    • System abnormal

    INCOMPLETE
    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system has a malfunction.
    • If the judgment result is INCOMPLETE, perform steps [A] through [C] again.
    • [A] to [C]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

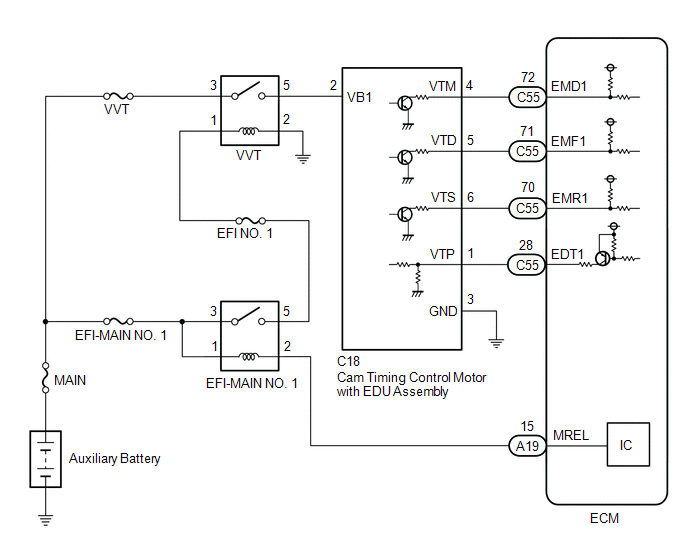

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • Inspect the fuses for circuits related to this system before performing the following procedure.
  • Vehicle Control History may be stored in the hybrid vehicle control ECU assembly if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the Freeze Frame Data and Vehicle Control History can be useful for troubleshooting.

    Click here

    (Select Powertrain in Health Check and then check the time stamp data.)

    Click here

  • If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU assembly, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.

    Click here

HINT:

Read Freeze Frame Data using the Techstream. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1.

CHECK TERMINAL VOLTAGE (POWER SOURCE OF CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY)

(a) Disconnect the cam timing control motor with EDU assembly connector.

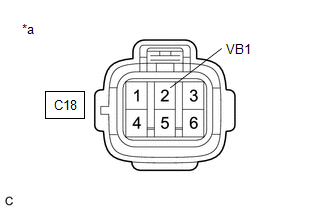

*a

Front view of wire harness connector

(to Cam Timing Control Motor with EDU Assembly)

(b) Turn the power switch on (IG).

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

C18-2 (VB1) - Body ground

Power switch on (IG)

11 to 14 V
NG

GO TO STEP 8

OK

2.

CHECK HARNESS AND CONNECTOR (CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY - BODY GROUND)

(a) Disconnect the cam timing control motor with EDU assembly connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C18-3 (GND) - Body ground

Always

Below 1 Ω
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

3.

INSPECT CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY (BODY GROUND)

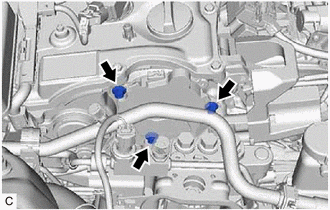

(a) Check installation condition.

  1. Check that the 3 installation bolts of the cam timing control motor with EDU assembly are tightened to the specified torque.

Torque:

21 N*m (214 kgf*cm, 15 ft.*lbf)

NG

TIGHTEN TO SPECIFIED TORQUE
OK

4.

CHECK HARNESS AND CONNECTOR (CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY - ECM)

(a) Disconnect the cam timing control motor with EDU assembly connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C18-6 (VTS) - C55-70 (EMR1)

Always

Below 1 Ω

C18-6 (VTS) or C55-70 (EMR1) - Body ground and other terminals

Always

10 kΩ or higher
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

5.

REPLACE CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY

(a) Replace the cam timing control motor with EDU assembly.

Click here

HINT:

Perform "Inspection After Repair" after replacing the cam timing control motor with EDU assembly.

Click here

NEXT

6.

CLEAR DTC

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Turn the Techstream on.

(d) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(e) Turn the power switch off and wait for at least 30 seconds.

NEXT

7.

CONFIRM WHETHER MALFUNCTION HAS BEEN SUCCESSFULLY REPAIRED

(a) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(b) Enter the following menus: Powertrain / Engine / Trouble Codes.

(c) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result

Proceed to

DTCs are not output

A

DTC P136001 is output

B
A

END
B

REPLACE ECM

8.

INSPECT VVT RELAY

(a) Inspect the VVT relay.

Click here

NG

REPLACE VVT RELAY
OK

9.

CHECK HARNESS AND CONNECTOR (VVT RELAY - CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY)

(a) Remove the VVT relay from No. 1 engine room relay block and No. 1 junction block assembly.

(b) Disconnect the cam timing control motor with EDU assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

5 (VVT relay) - C18-2 (VB1)

Always

Below 1 Ω

5 (VVT relay) or C18-2 (VB1) - Body ground and other terminals

Always

10 kΩ or higher
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

10.

CHECK HARNESS AND CONNECTOR (POWER SOURCE OF VVT RELAY)

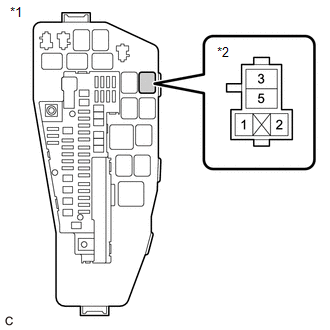

*1

No. 1 Engine Room Relay Block and No. 1 Junction Block Assembly

*2

VVT Relay

(a) Remove the VVT relay from No. 1 engine room relay block and No. 1 junction block assembly.

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

3 (VVT relay) - Body ground

Always

11 to 14 V
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (AUXILIARY BATTERY - VVT RELAY)
OK

11.

CHECK HARNESS AND CONNECTOR (POWER SOURCE OF VVT RELAY)

*1

No. 1 Engine Room Relay Block and No. 1 Junction Block Assembly

*2

VVT Relay

(a) Remove the VVT relay from No. 1 engine room relay block and No. 1 junction block assembly.

(b) Turn the power switch on (IG).

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

1 (VVT relay) - Body ground

Power switch on (IG)

11 to 14 V
OK

REPAIR OR REPLACE HARNESS OR CONNECTOR (VVT RELAY - BODY GROUND)
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (EFI-MAIN NO. 1 RELAY - VVT RELAY)

Fuel Pump "A" Control Circuit Short to Battery (P062712). Fuel Pump "A" Control Circuit Short to Ground or Open (P062714). VIN Not Programmed (P063051)

"B" Camshaft Position Actuator Bank 1 General Electrical Failure (P136201)

See More:

Toyota Avalon (XX50) 2019-2022 Service & Repair Manual > Audio And Visual System(for Hv Model): Voice Recognition Microphone Disconnected (B1579)
DESCRIPTION The radio and display receiver assembly, roof console box sub-assembly and telephone microphone assembly are connected to each other using the microphone connection detection signal lines. This DTC is stored when a microphone connection detection signal line is disconnected. DTC No. Dete ...

Toyota Avalon (XX50) 2019-2022 Service & Repair Manual

© 2026 Copyright engine.tavalon.net
0.1261
